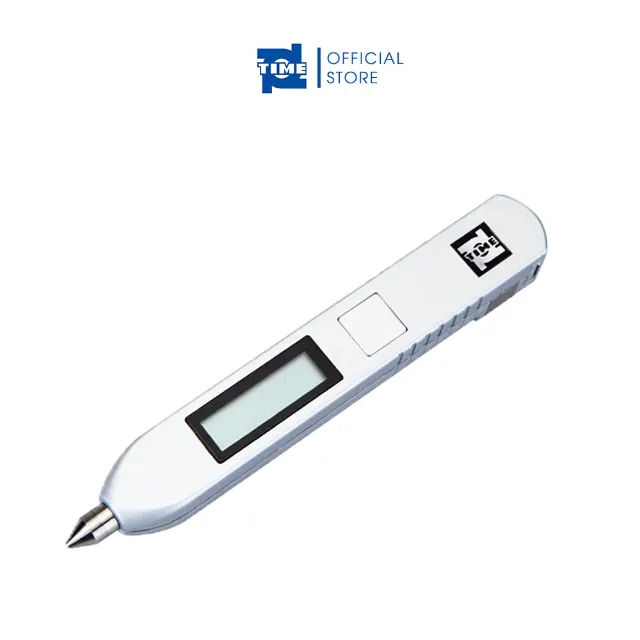

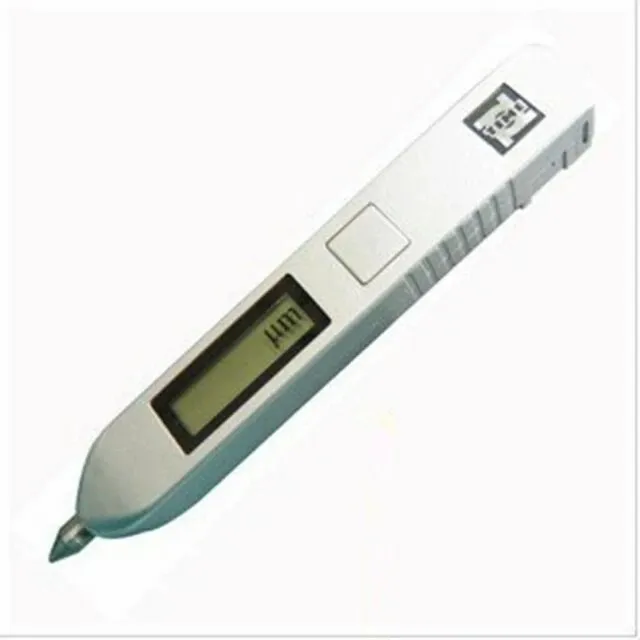

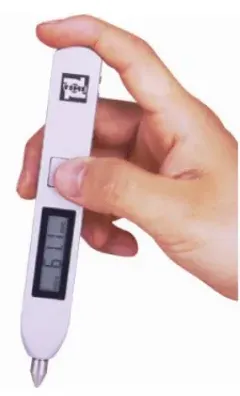

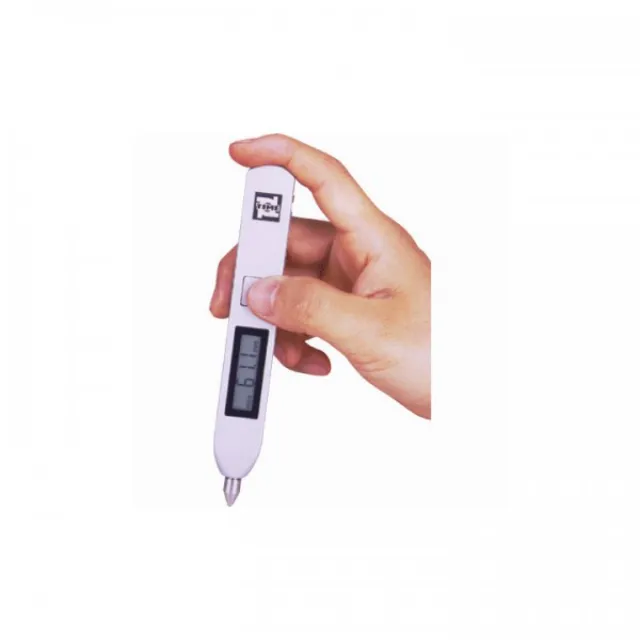

TIME7120/7122/7126 VIBRATION PEN TIME

Brand:
Product Code: P22922

  • Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so
  • Compact size, small weight, easy handling
  • Prompt testing of vibration on the workshop machines
  • For quick checking of unbalance misalignment, bearings and gears
  • Guard against mechanical malfunction
    Holding tested value for 40 seconds
  • TIME7120 is used specially for velocity testing
  • TIME7122 is used specially for displacement testing
  • TIME7126 is used for testing of acceleration, velocity and displacement





  • Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so
  • Compact size, small weight, easy handling
  • Prompt testing of vibration on the workshop machines
  • For quick checking of unbalance misalignment, bearings and gears
  • Guard against mechanical malfunction
    Holding tested value for 40 seconds
  • TIME7120 is used specially for velocity testing
  • TIME7122 is used specially for displacement testing
  • TIME7126 is used for testing of acceleration, velocity and displacement

Model

TIME7120

TIME7122

TIME7126

Parameters

RMS of vibration velocity (mm/s)

Displacement

Acceleration, Velocity, Displacement





Testing Range





Velocity: 0.1mm/s~ 199.9mm/s



Displacement: 0.01 mm ~ 1.999 mm (peal~peak)

Acceleration: 0.1m/s2-199.9m/s2 Velocity: 0.1mm/s-199.9 mm/s(RMS)

Displacement: 0.001mm-1.999 mm (peak-peak)



Frequency Range

Velocity: 10Hz-1KHz Acceleration: 10Hz-1KHz



Displacement: 10Hz-500Hz

Acceleration: 10Hz-1KHz Velocity: 10Hz-500Hz

Displacement: 10Hz-1KHz

Accuracy

±5%

Power Supply

two button batteries(LR44 or SR44)

Dimension / Weight

150mm×22mm×18mm / 55g (including batteries)
