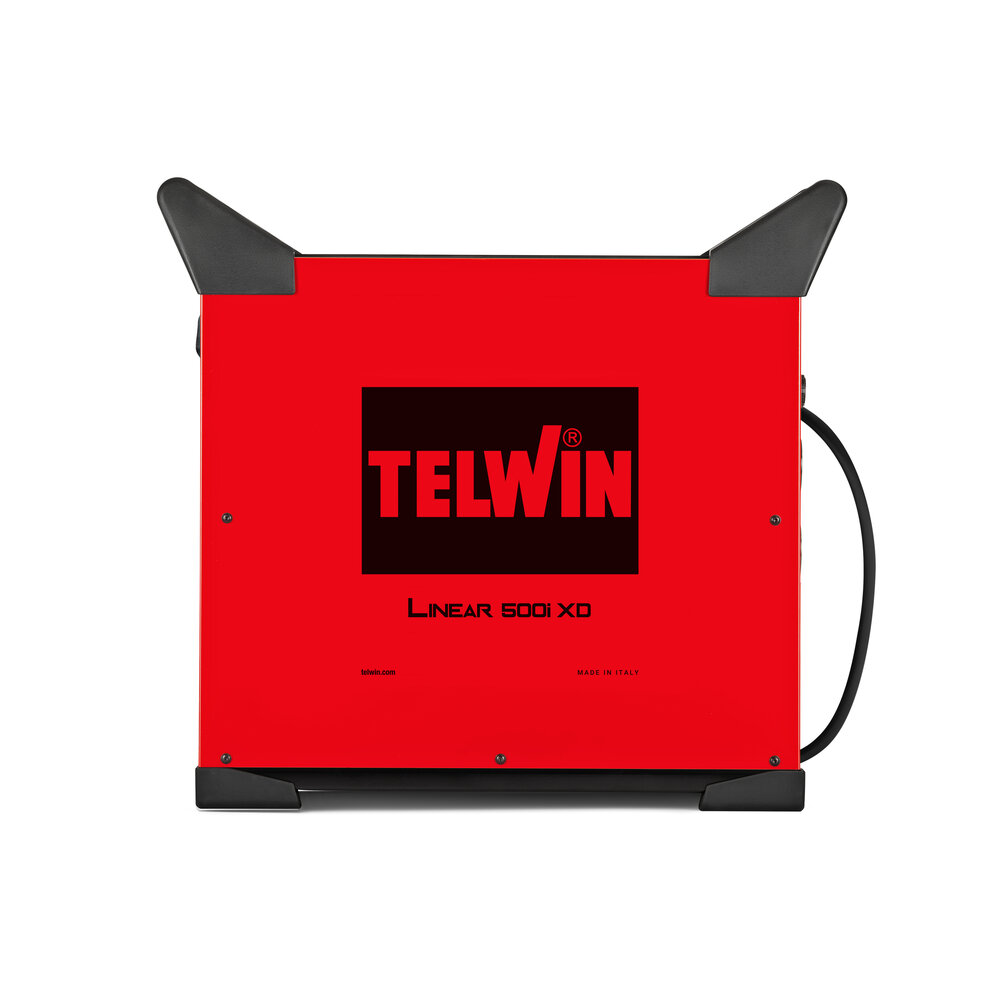

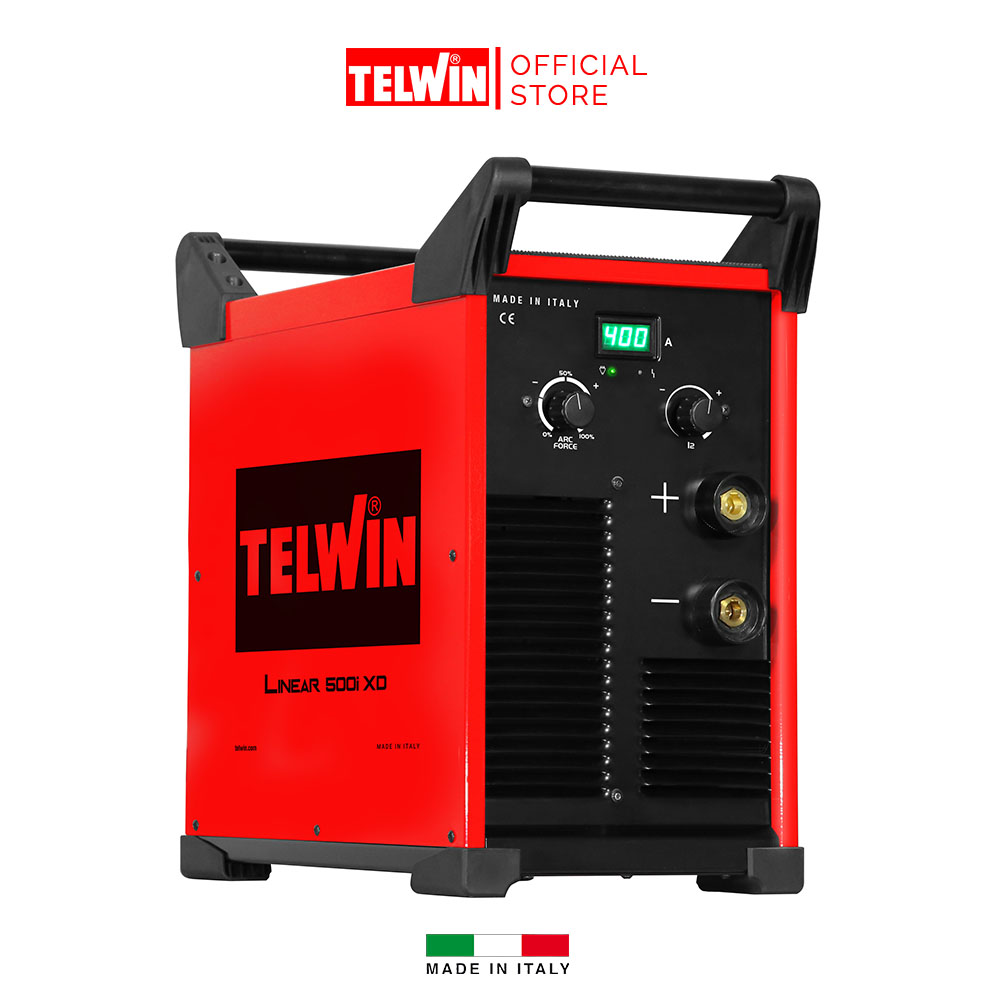

MMA Welder TELWIN LINEAR 500i XD INVERTER
Brand:
Product Code: 816185
![]() | MMA DC | ![]() | CE MARKING |
![]() | 3 PH 230V-400V | ![]() | EAC CERTIFICATION |
Inverter MMA electrode welding machine in direct current (DC).
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron.
Ideal for use with motor generators, it maintains a high level of stability of the welding current to variations in the supply voltage, both to undervoltage (-25%) and overvoltage (+15%).

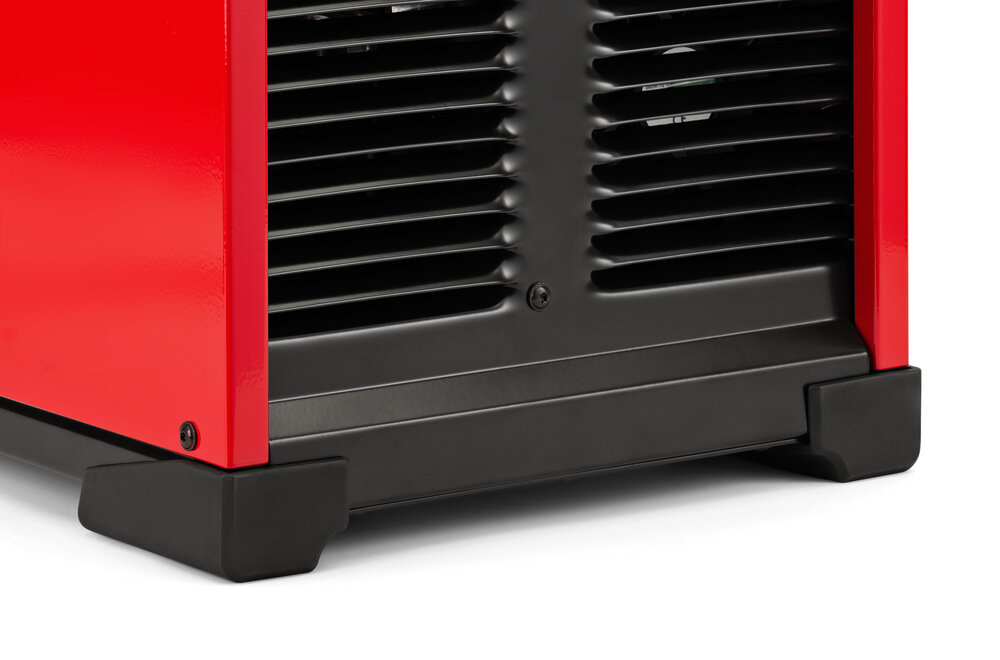

Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life.
The XD (eXtra Duty) model provides a high Duty Cycle that supports continuous working cycles with a wide variety of electrodes.
Features:
- Robust, impact resistant and dustproof;
- Low weight and size;
- High energy saving;

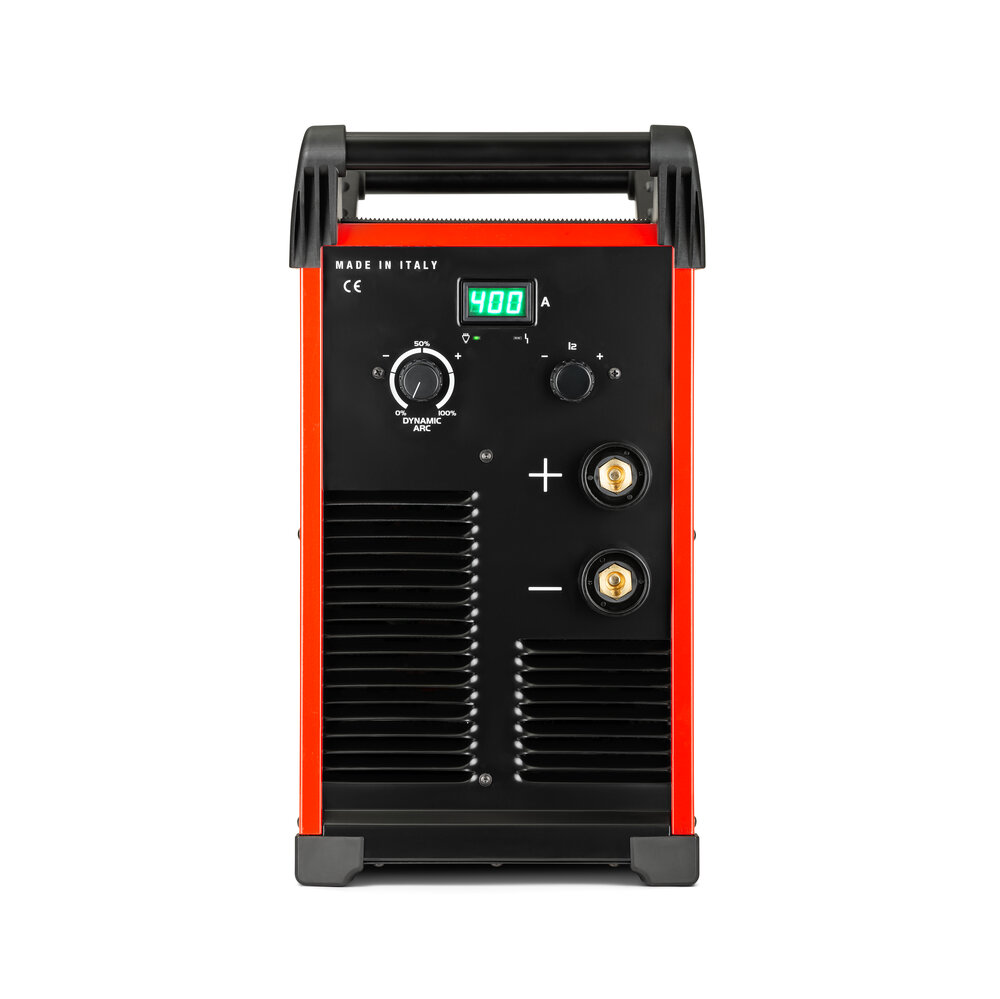

- Display to show pre-set welding current;
- High stability of the welding current despite variations in the supply voltage;
- Synergic adjustment of Arc Force and Hot Start according to the type of electrode in use;
- Anti-stick device;
- Thermostat, undervoltage (-25%), overvoltage (+15%), overcurrent, motor-generator protections.
Characteristic | |
CODE | 816185 |
DC CURRENT | 300 / 400 A |
EAN CODE | 8056590371527 |
THREE PHASE MAINS VOLTAGE | 230 / 400 V |
MAINS FREQUENCY | 50 / 60 Hz |
CURRENT RANGE | 20 - 320 / 20 - 400 A |
MAX CURRENT | 300 @ 60 % / 400 @ 60% A |
MAX NO LOAD VOLTAGE | 93 / 67 V |
MAX ABSORBED CURRENT | 35 / 29 A |
MAX ABSORBED POWER | 11,8 / 16,6 kW |
ABSORBED CURRENT AT 60% - MAX | 35 / 29 A |
ABSORBED POWER AT 60% | 11,8 / 16,6 kW |
MOTORGENERATOR MINIMUM POWER | 17 / 25 kW |
EFFICIENCY | 90 % |
POWER FACTOR (cosphi) | 0,82 |
D. USABLE ELECTRODES IN DC | 1,6 - 6 mm |
PROTECTION DEGREE | IP23 |
Meansure | |
WEIGHT | 23,6 kg |
DIMENSIONS | 54,6 x 27,4 x 50 cm |
