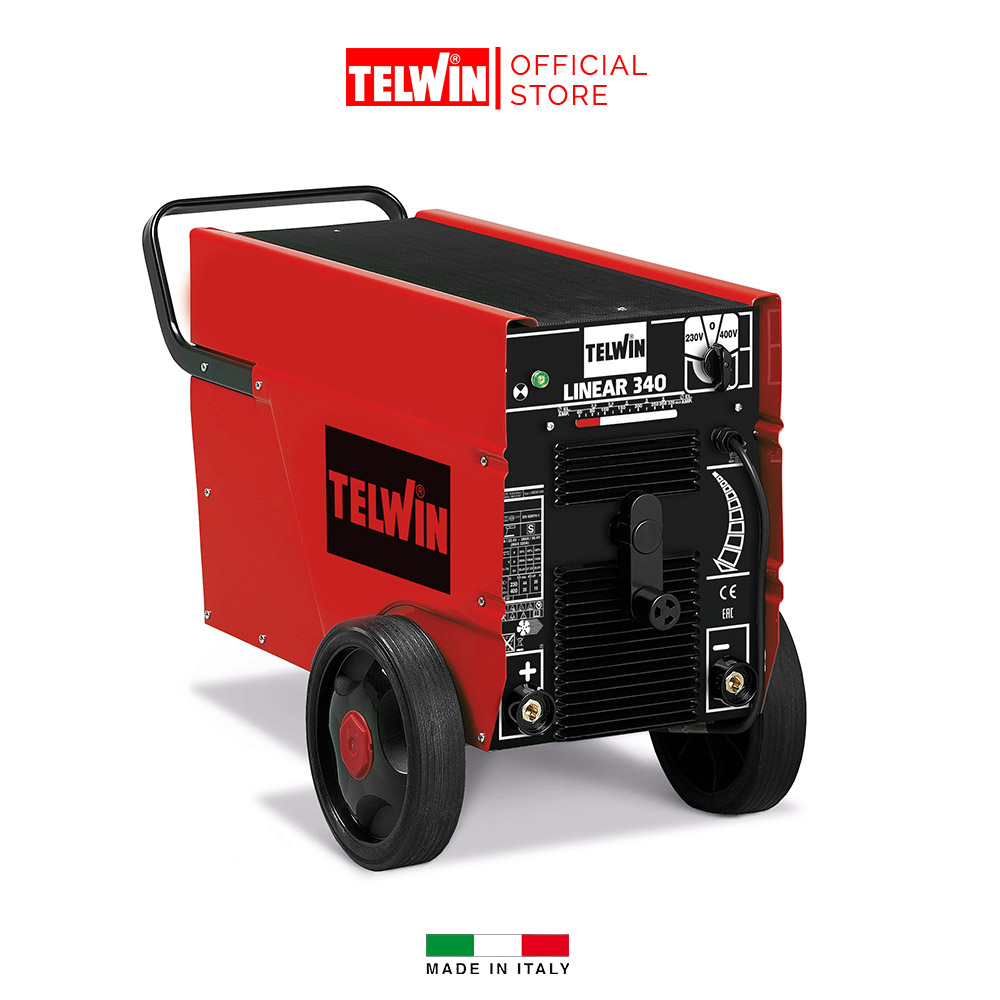

TELWIN LINEAR 340 230-400V

Brand:
Product Code: 819020

TELWIN LINEAR 340 is a 3 phases electronic welding machine from the Telwin brand, with the advantage of using a variety of electrodes such as base electrodes, rutile, stainless steel, cast iron, aluminum.

TELWIN LINEAR 340 230-400V



MMA, rectified, electrode welding machine in direct current (DC).

Stepless regulation of welding current.

Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.

Characteristic
CODE 819020
CURRENT AT 60% 180 A
THREE PHASE MAINS VOLTAGE 230 / 400 V
MAINS FREQUENCY 50 / 60 Hz
CURRENT RANGE 60 - 320 A
MAX CURRENT 260 A - 35 %
MAX NO LOAD VOLTAGE 65 V
MAX ABSORBED POWER 11,5 kW
POWER FACTOR (cosphi) 0,6
D. USABLE ELECTRODES IN DC 2 - 6 mm
PROTECTION DEGREE IP22
Meansure
WEIGHT 80 kg
DIMENSIONS 89 - 46 - 59 cm
