Product Code: 601753500

(220-240 V / 50 - 60 HZ); METAL CARRY CASE

- Order no.: 601753500 EAN: 4007430298454;
- Rated input power: 1600 W;
- Max. chamfer height at 45°: 15 mm / 19/32 ";

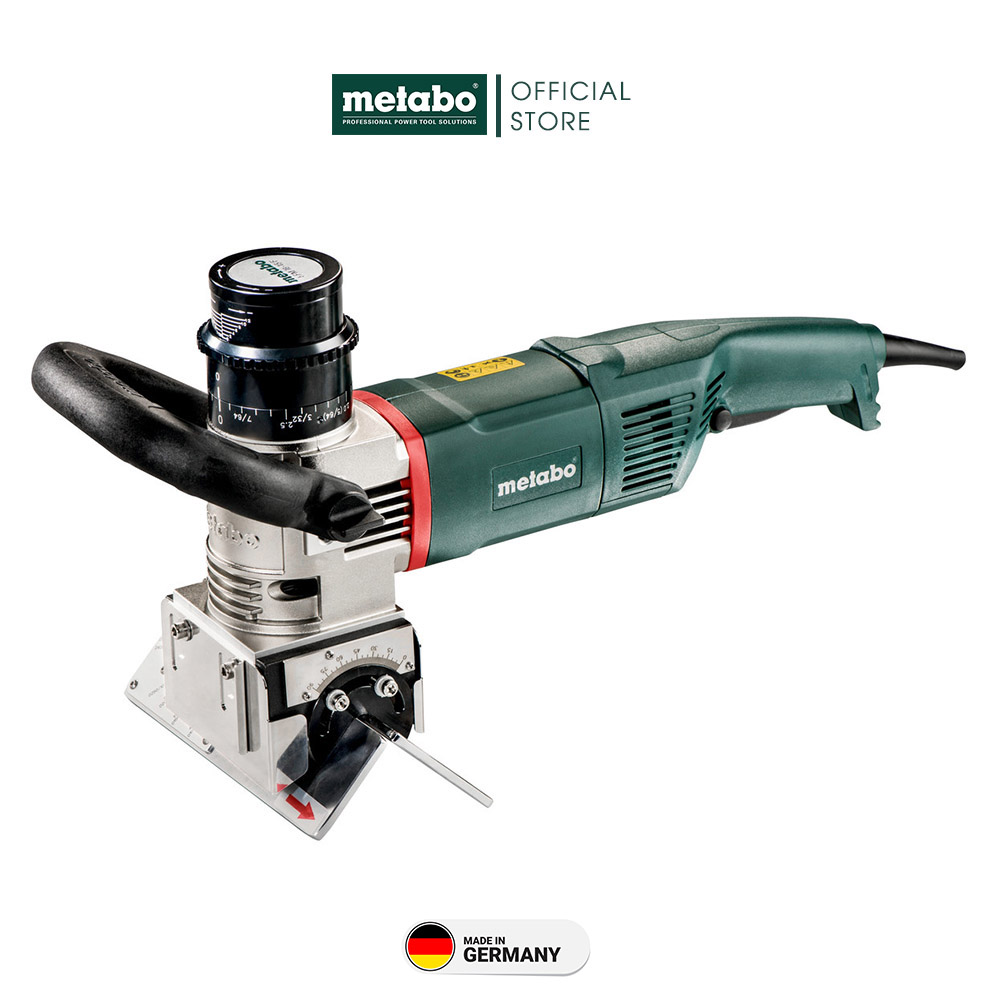

  • Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation

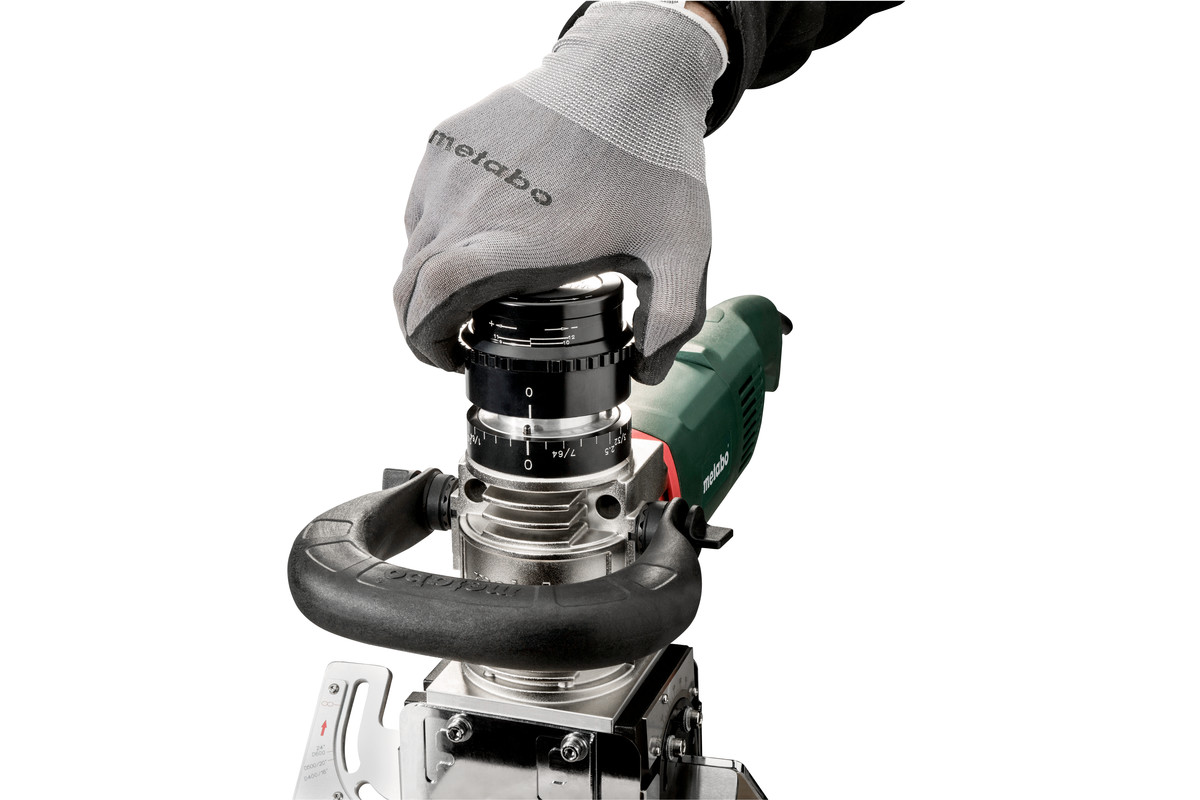

  • One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

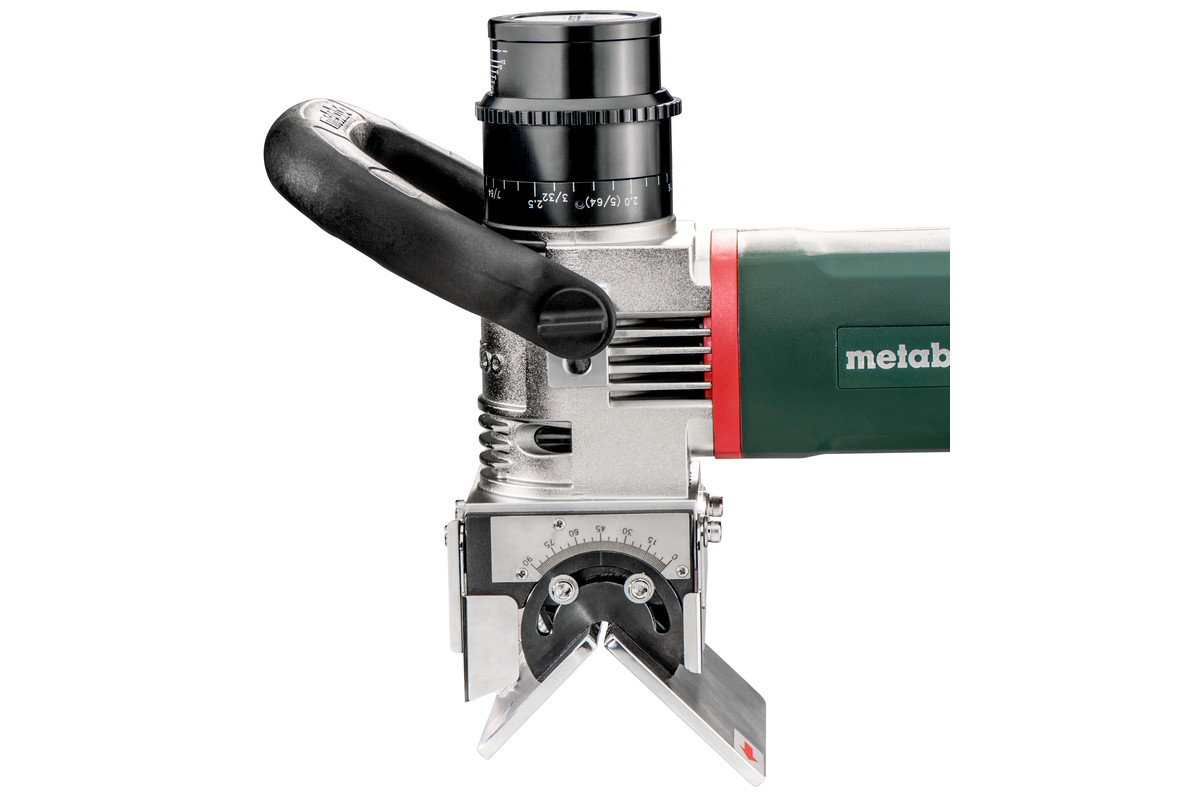

  • Precise setting of the chamfer angle directly via the guide plates

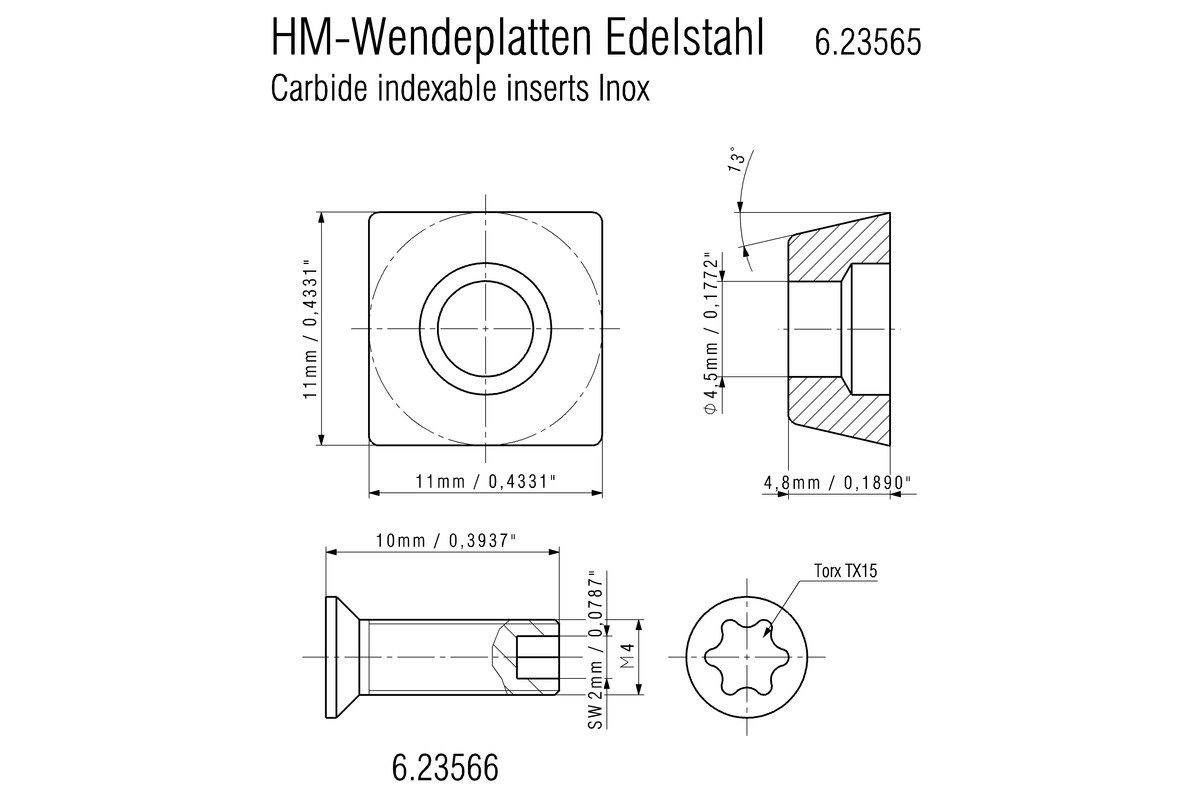

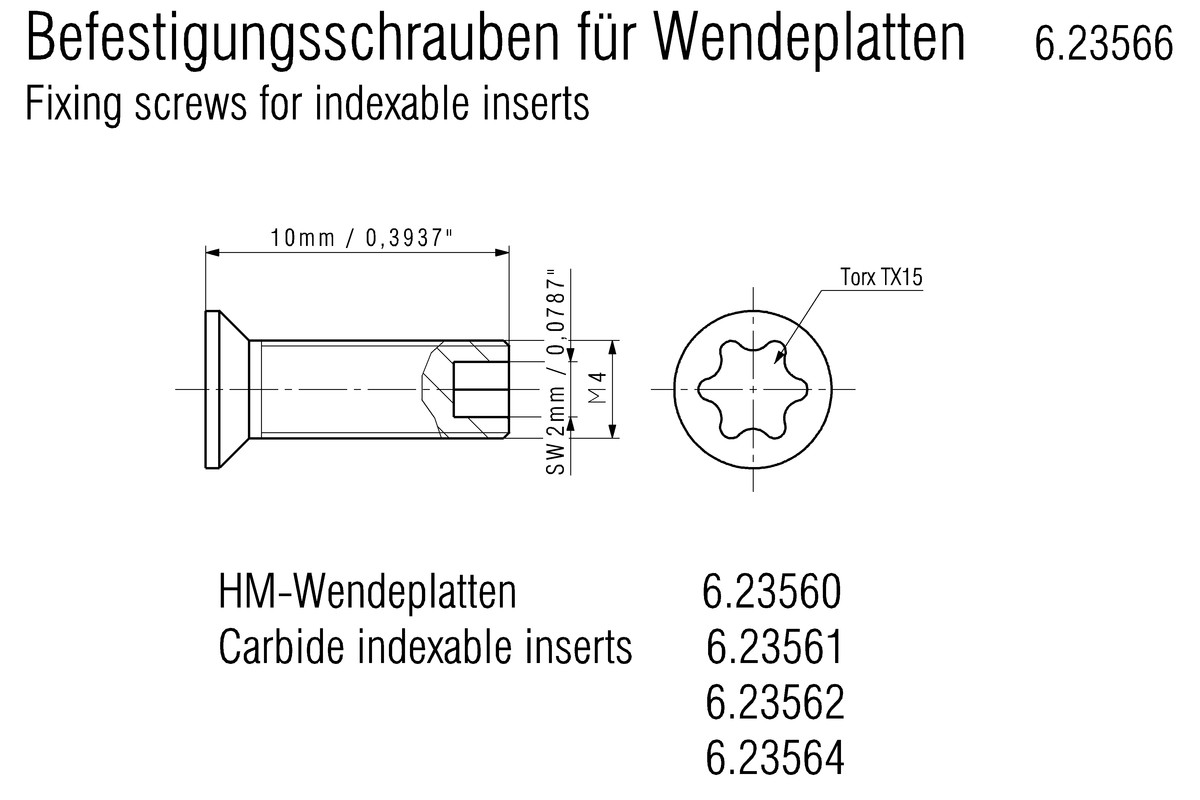

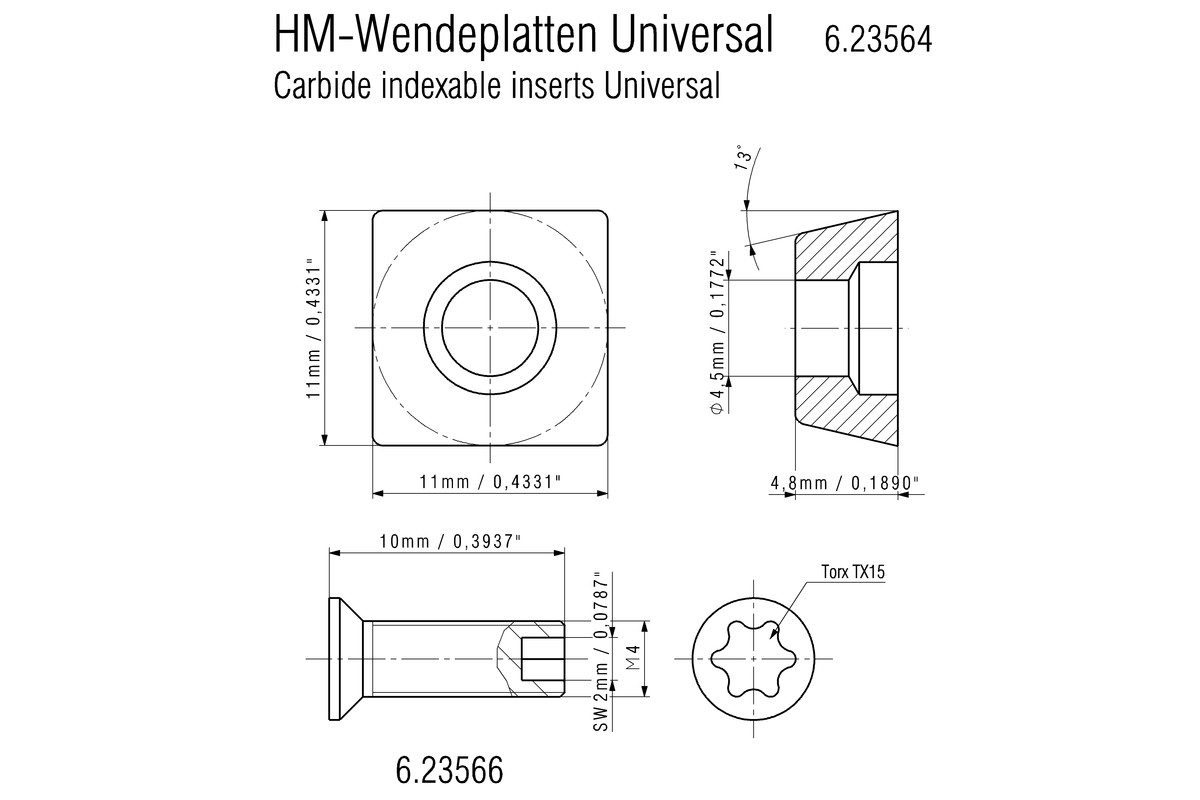

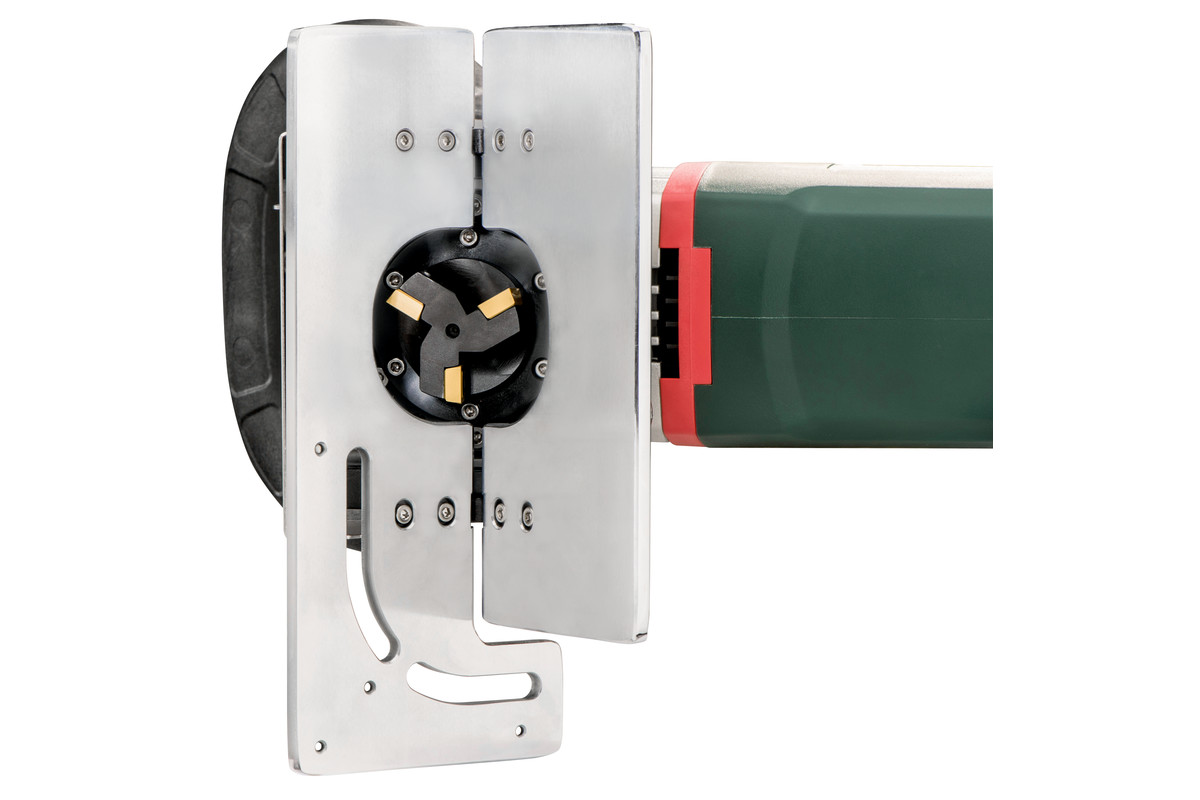

  • Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
  • Controlled working by virtue of large-scale guide plates
  • Stop roller to guide along pipes for easy preparation of weld seams
  • Bail handle adjusts without tools for secure, even guiding
  • Metabo Marathon-motor with patented dust protection for long service life
  • Electronic overload protection, soft start and restart protection
  • Protection of the user by virtue of lateral plates for conveying the chips
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Curves smallest outer Ø 100 mm / 3 15/16 "
Grading of cutting depth setting 0.1 mm / 0.00394 "

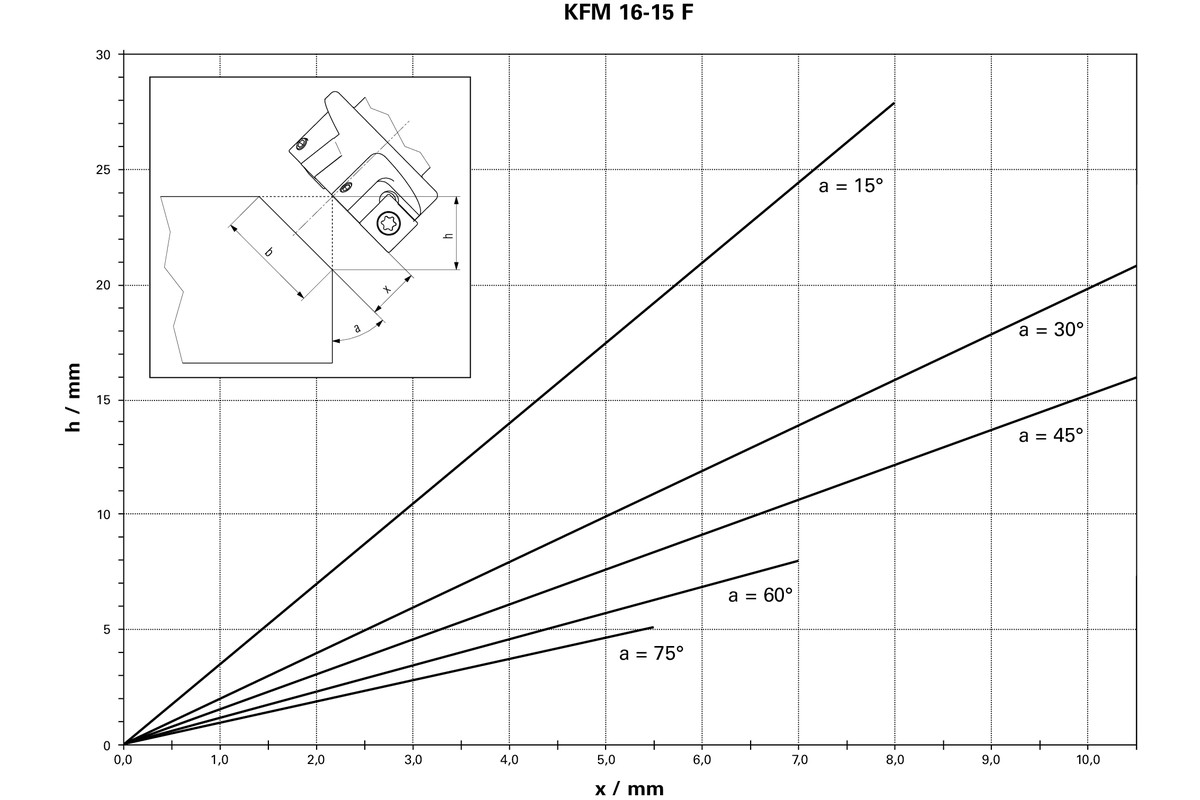

Max. chamfer height at 45° 15 mm / 19/32 "
Type of edges Chamfer
No-load speed 12000 rpm
Rated input power 1600 W
Output power 900 W
Noise emission
Sound power level (LwA) 104 dB(A)
Sound pressure level 93 dB(A)
Weight (without power cable) 6.9 kg / 15.2 lbs
Cable length 4 m / 157 1/2 "
