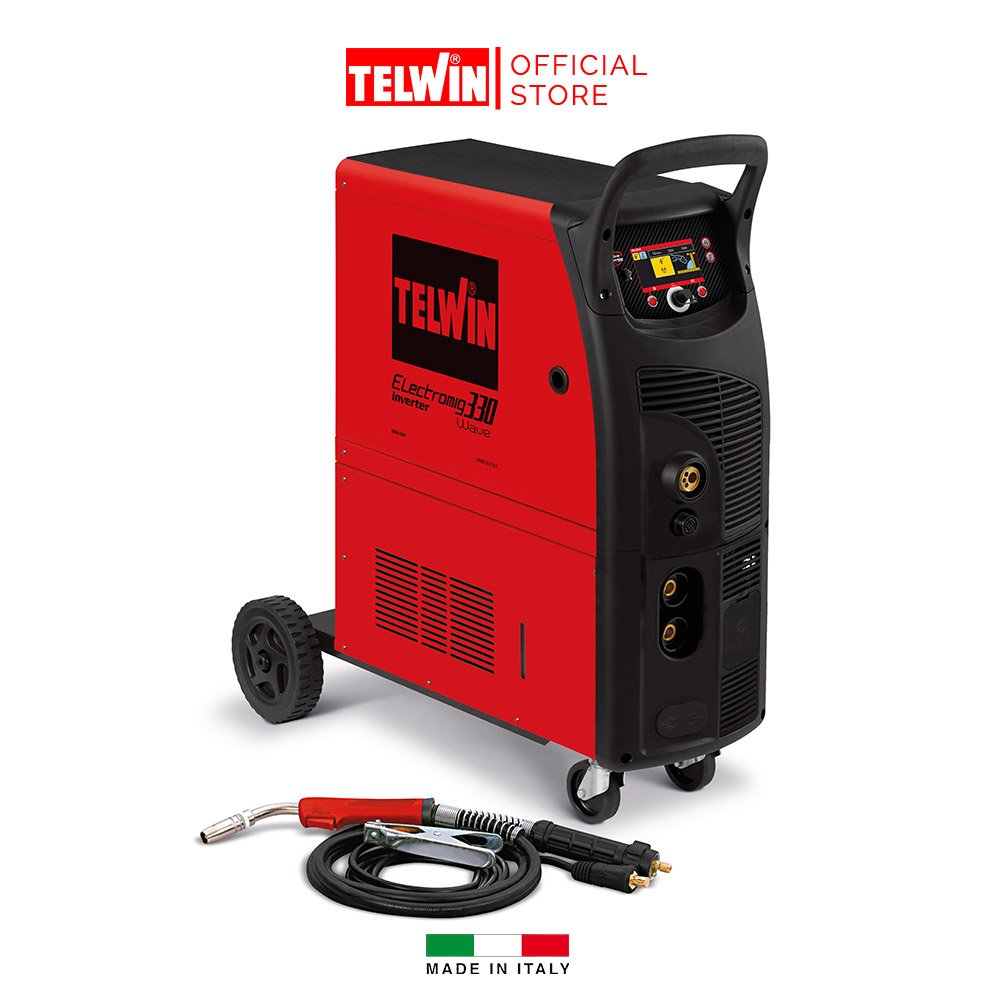

TELWIN ELECTROMIG 330 WAVE 400V + ACC MIG-MAG Welding Machine

Brand:
Product Code: 816061

TELWIN ELECTROMIG 330 WAVE 400V + ACC MIG-MAG Welding Machine is a Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG DC-Lift inverter welding machine

TELWIN ELECTROMIG 330 WAVE 400V + ACC.

Code 816061

Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG DC-Lift inverter welding machine.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanksto SYNERGIC adjustment of parameters.
Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) with specific welding processes having low thermal transfer, ROOT-MIG and ATC, and specific processes for aluminium and brazed materials AB PULSE and AB PoP.
The intelligent and automatic control of the arc, instant by instant, will maintain high levels of welding in all working conditions, with different materials and/or gases.
Complete with VRD device.
Supplied with various stored welding programmes, it offers the possibilityalso to store, trace and export more customised programmes.
Complete with MIG-MAG torch, cable and earth clamp.

Characteristic
DC CURRENT 205 A
MAX CURRENT DC (EN 60974-1) 270A @ 30%
MAINS VOLTAGE 400 V
MAINS FREQUENCY 50 / 60 Hz
ALUMINIUM WELDING WIRE DIAMETER 0,8 - 1,2 mm
CURRENT RANGE 20 - 300 A
D. USABLE ELECTRODES IN DC 1,6 - 6 mm
FLUX CORED WELDING WIRE DIAMETER 0,8 - 1,2 mm
INOX WELDING WIRE DIAMETER 0,8 - 1,2 mm
STEEL WELDING WIRE DIAMETER 0,6 - 1,2 mm
ABSORBED CURRENT AT 60% - MAX 10 A
MAX NO LOAD VOLTAGE 63 V
MAX ABSORBED CURRENT 15 A
MAINS FUSE 16 A
MAX ABSORBED POWER 9 kW
ABSORBED POWER AT 60% 6,5 kW
EFFICIENCY 90 %
POWER FACTOR (cosphi) 0,9
PROTECTION DEGREE IP23
DIMENSIONS 86,5 x 39 x 91,5 cm
Weight 39 kg
