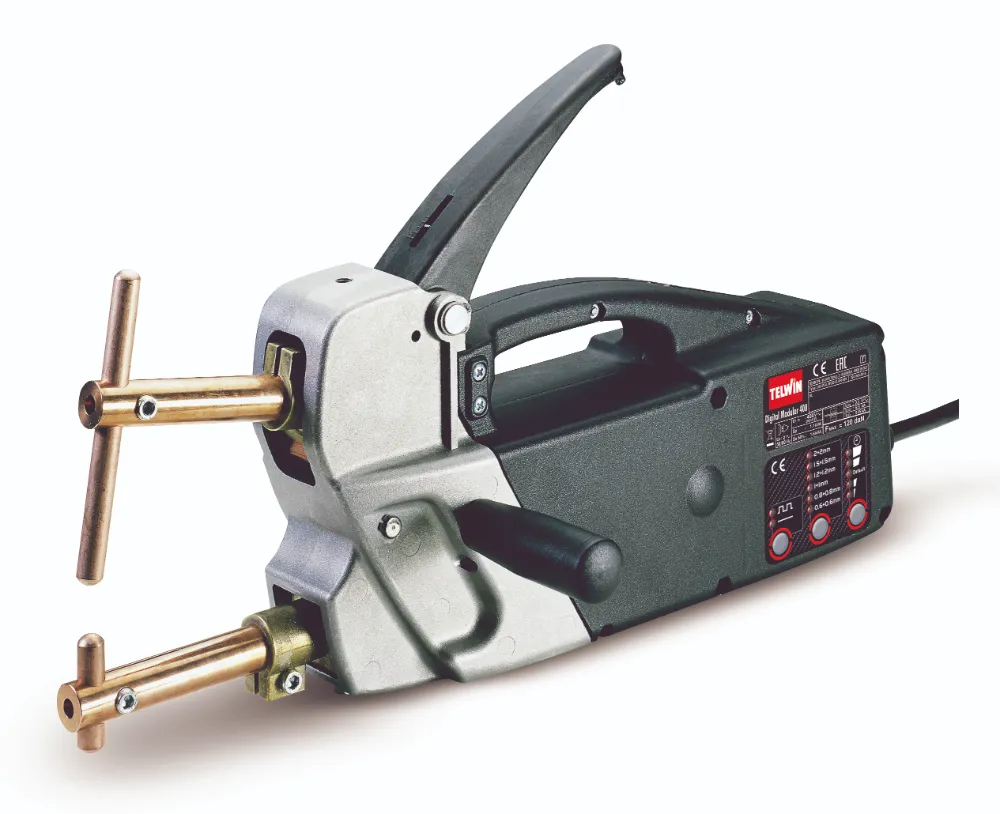

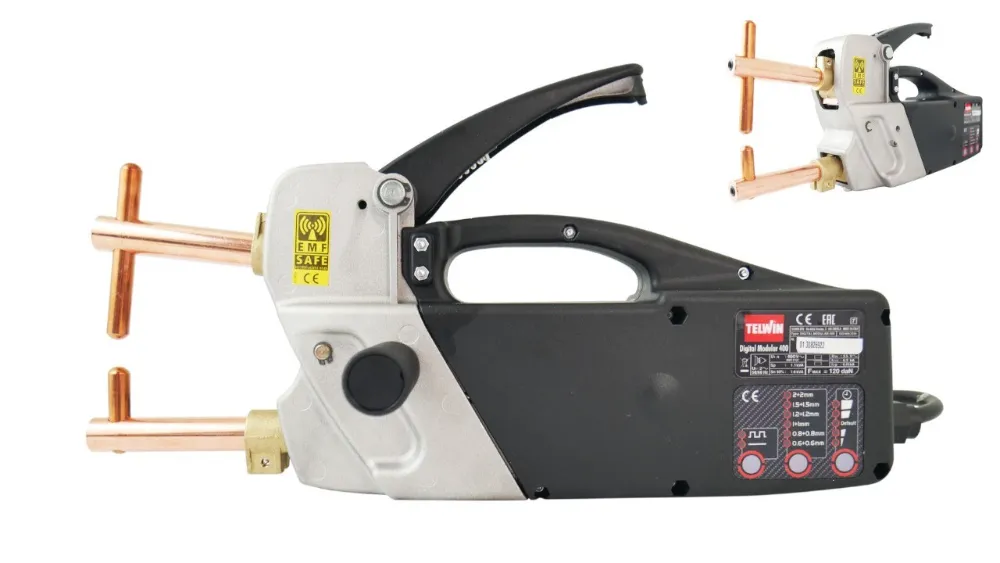

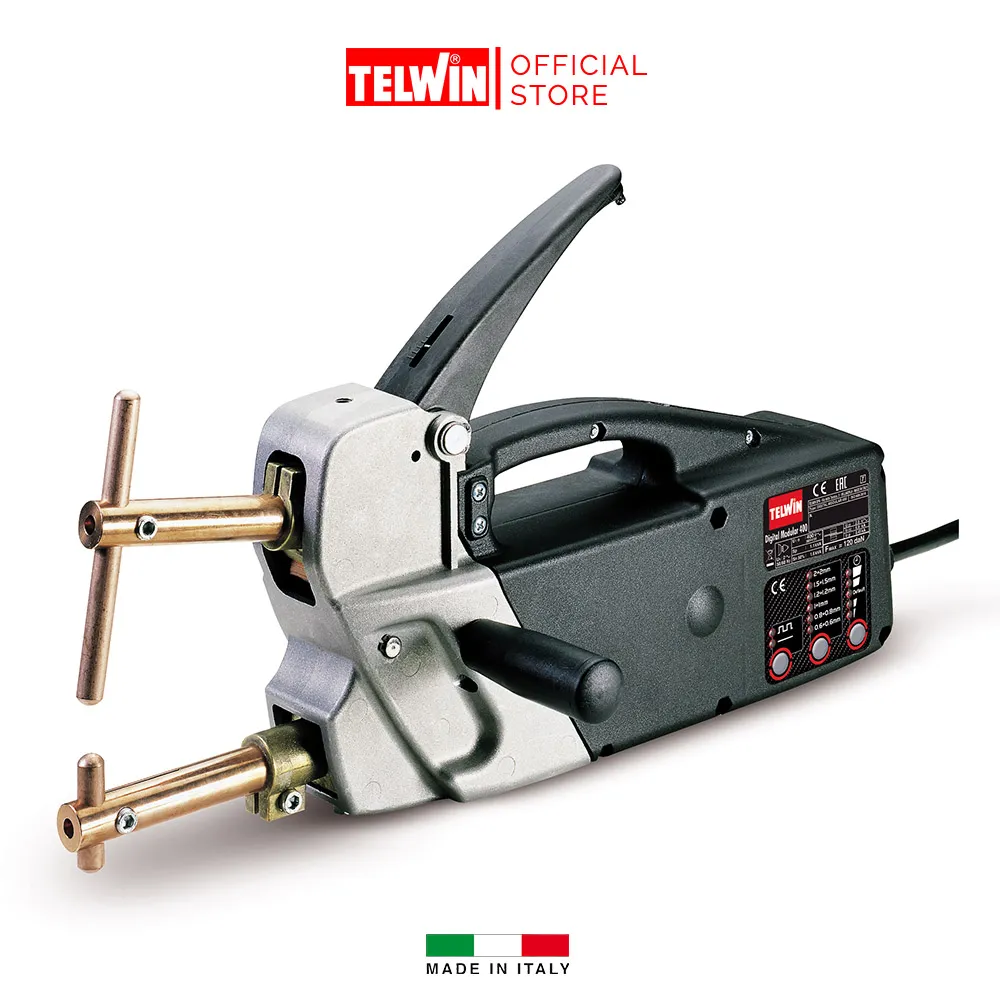

Microprocessor controlled, spot welding machine. It implements a new Fuzzy logic control system thatsimplifies its use and increases the spot welding quality.
Suitable for spot welding of sheets with maximum thickness 2+2mm. Features:
- automatic regulation of the spot welding current and time according to the material thickness
- choice between continuous and pulse operation (suitable for sheets with high yield points - high stress)
- arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
- handgrip made out of thermic isolating material
- thermal protection.




Characteristic | |
DOUBLE PHASE MAINS VOLTAGE | 400 V |
MAINS FREQUENCY | 50 / 60 Hz |
MAX NO LOAD VOLTAGE | 2,5 V |
MAX ABSORBED POWER | 13 kW |
MAINS FUSE | 16 A |
POWER FACTOR (cosphi) | 0,9 |
PROTECTION DEGREE | IP20 |
Meansure | |
WEIGHT | 10,3 kg |
DIMENSIONS | 44 x 10 x 18,5 cm |
There are no reviews for this product.
