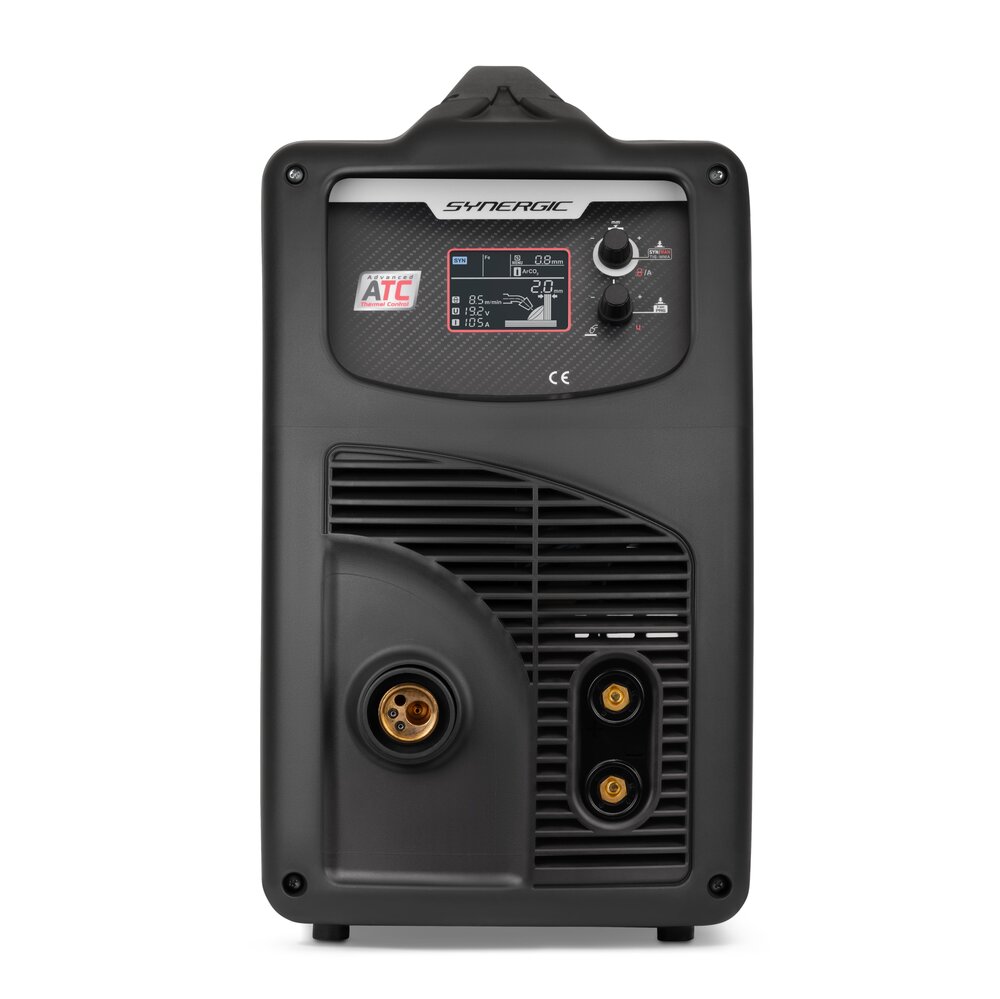

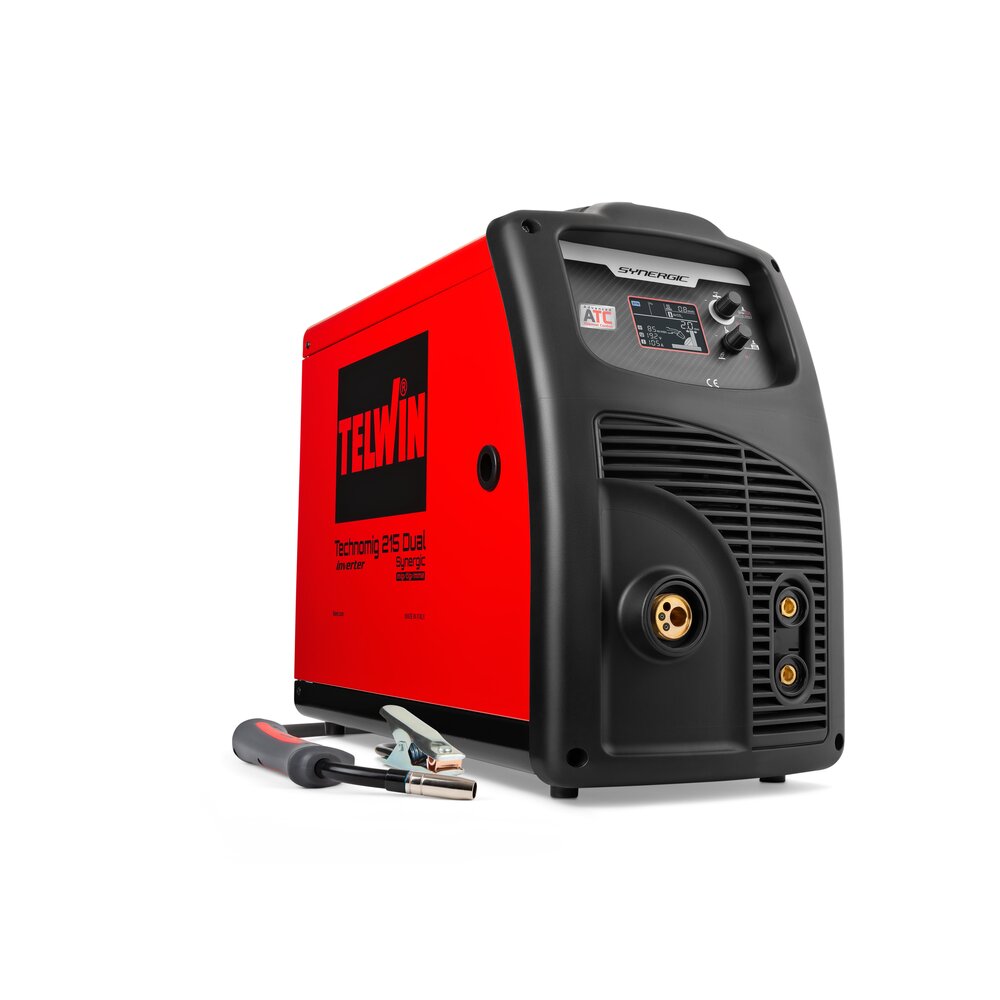

TELWIN TECHNOMIG 215 DUAL SYNERGIC

Brand:
Product Code: 816053

- Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding;
- 27 synergy curves available;
- Visualization on LCD display of voltage, current, welding speed;
- Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
- Choice of 2/4 times, spot operation;
- VRD device;
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MIG-MAG torch, work clamp and cable.

TECHNOMIG 215 DUAL SYNERGIC 230V

code 816053
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift inverter multiprocess welding machine.
Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet).
The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.

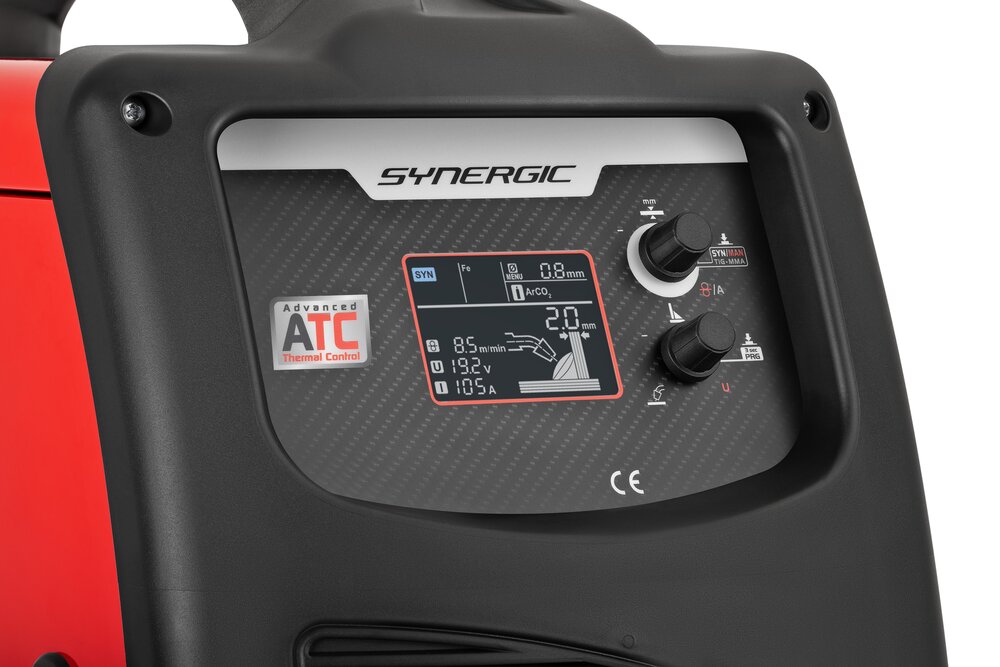

The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.
Features:
- Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding;
- 27 synergy curves available;
- Visualization on LCD display of voltage, current, welding speed;
- Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
- Choice of 2/4 times, spot operation;
- VRD device;
- Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MIG-MAG torch, work clamp and cable.
Characteristic
CODE 816053
DC CURRENT 100 A
EAN CODE 800489791763 4
FLUX CORED WELDING WIRE DIAMETER 0,8 - 1,2 mm
MAX CURRENT DC (EN 60974-1) 180 @ 20% A
SINGLE PHASE MAINS VOLTAGE 230 V
MAINS FREQUENCY 50 / 60 Hz
CURRENT RANGE 20 - 220 A
INOX WELDING WIRE DIAMETER 0,8 - 1 mm
STEEL WELDING WIRE DIAMETER 0,6 - 1 mm
PIECES/PALLET 8 pz/pallet
PIECES/PALLET - B 4 pz/pallet B
MAX NO LOAD VOLTAGE 78 V
BRAZING WIRE DIAMETER 0,8 - 1 mm
MAX ABSORBED CURRENT 32 A
MAX ABSORBED POWER 5 kW
ABSORBED CURRENT AT 60% - MAX 15 A
ABSORBED POWER AT 60% 2,2 kW
EFFICIENCY 84 %
POWER FACTOR (cosphi) 0,7
D. USABLE ELECTRODES IN DC 1,6 - 3,2 mm
PROTECTION DEGREE IP23
Meansure
WEIGHT 22 kg
DIMENSIONS 62 x 26 x 49 cm
