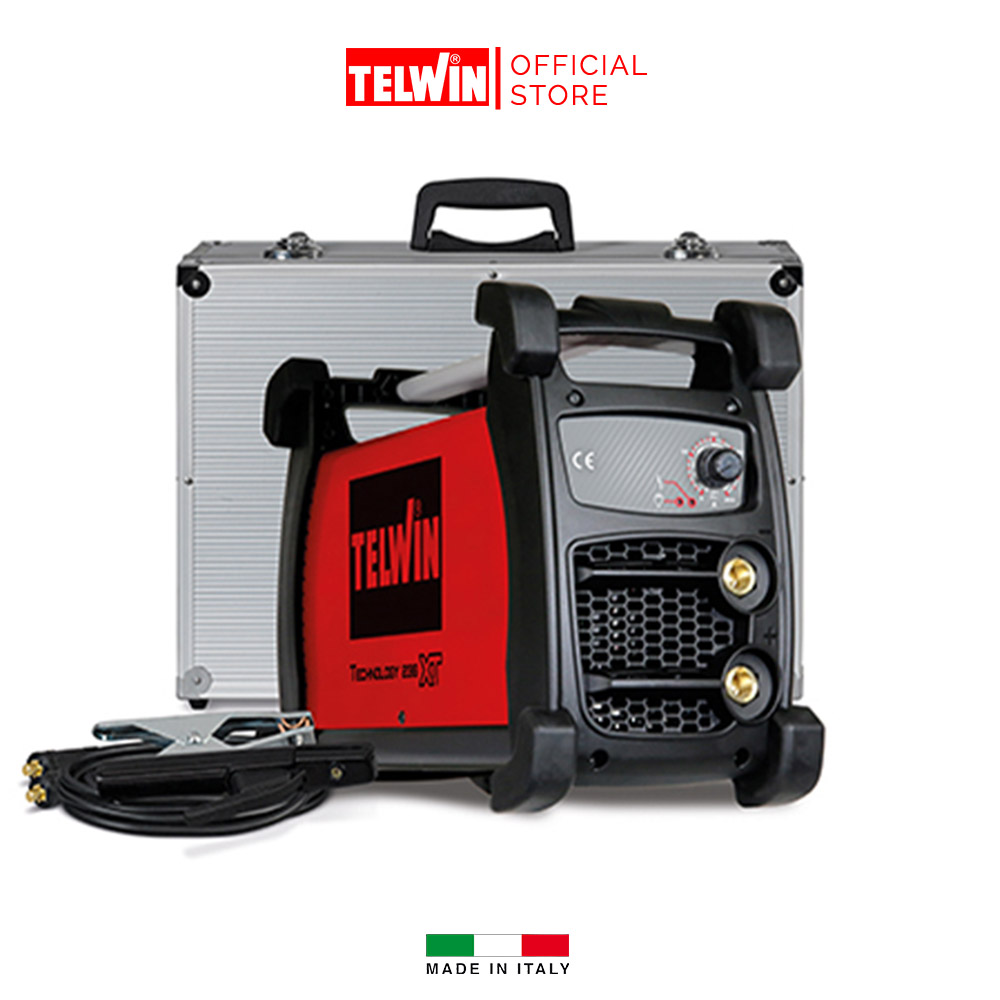

TELWIN TECHNOLOGY 236 XT 230V ACX+ALU CASE

Brand:
Product Code: 816251

- Brand Origin: ITALY
- compact and light
- 50 Ø dinse
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Robust and impact resistant.
Features:
- compact and light
- 50 Ø dinse
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and aluminium carry case.

XT RANGE

the “eXTreme” side of welding



[img]

POWER / HEAVY DUTY



powerful and performing, their duty-cycle was designed for heavy use.


[img]

TRASPORTABILITY



thanks to the solid metal handle and the reduced weight, they can be transported anywhere.


[img]

ANTI-SHOCK BUMPERS



designed to resist impact during the most challenging works or the hardest transport.

Characteristic
CODE 816251
SINGLE PHASE MAINS VOLTAGE 230 V
CURRENT RANGE 5 - 200 A
MAX NO LOAD VOLTAGE 60 V
MAX ABSORBED CURRENT 38 A
MAX ABSORBED POWER 6 kW
ABSORBED CURRENT AT 60% - MAX 22 A
ABSORBED POWER AT 60% 3,3 kW
MOTORGENERATOR MINIMUM POWER 10 kW
EFFICIENCY 89 %
POWER FACTOR (cosphi) 0,7
D. USABLE ELECTRODES IN DC 1,6 - 4 mm
PROTECTION DEGREE IP23
Meansure
WEIGHT 10,55 kg
DIMENSIONS 37,5 x 50 x 22 cm
