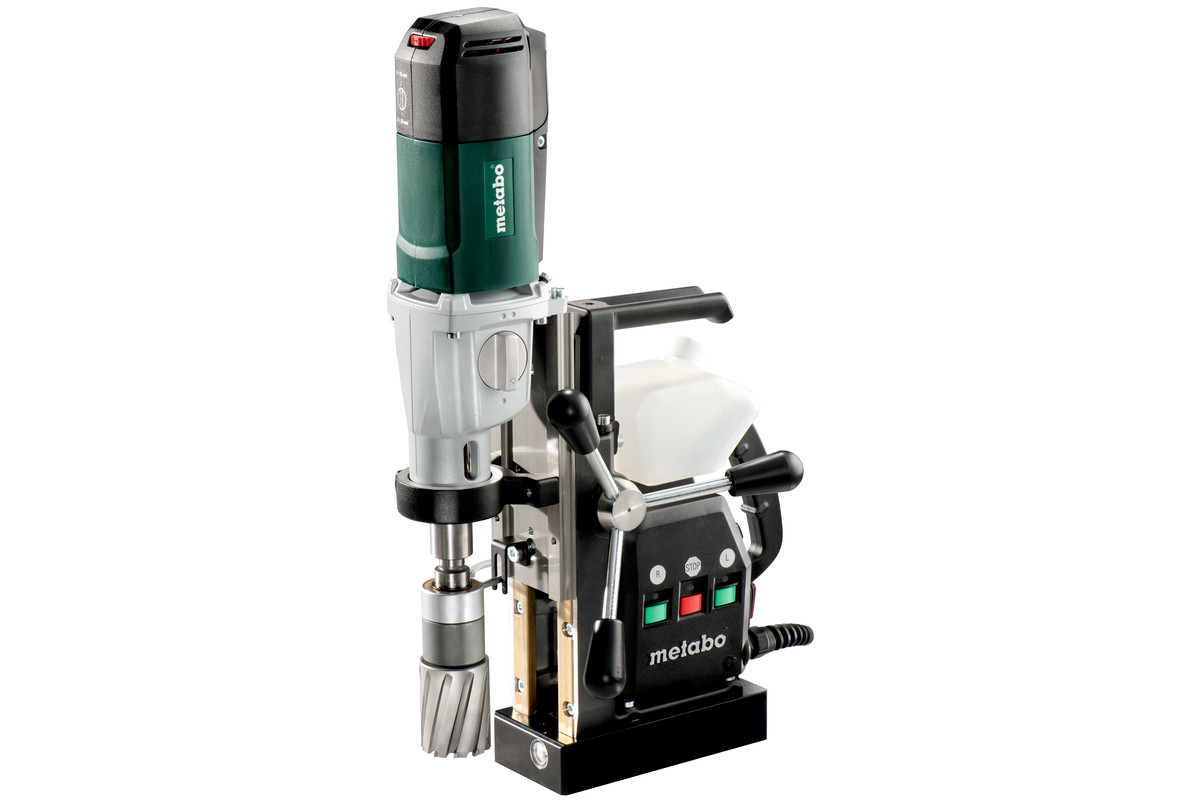

MAG 50 () MAGNETIC CORE DRILL

Brand:
Product Code: 600636500

(220-240 V / 50 - 60 HZ); PLASTIC CARRY CASE

Rated input power: 1200 W

Max. drill-Ø with core drill: 50 mm / 2 "

Max. drill-Ø with spiral drill: 20 mm / 3/4 "

Maximum drilling depth: 50 mm / 2 "

No-load speed: 100 - 250 / 200 - 450 rpm

Bit retainer: Morse taper MK 2 / Weldon shaft 19 mm (3/4").

Max. magnetic holding force: 12250 N





  • Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
  • Magnetic base with high holding power permits working on vertical surfaces and overhead
  • Robust Metabo marathon motor with internal wiring for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Clockwise/anti-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speeds
  • Integrated coolant container for easy to dose internal cooling of the core drill
  • Bright LED light for easy alignment in poor light conditions
  • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
  • Protective circuit starts motor only if the magnet is activated
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Lockable slide for comfortable tool change
  • Handle for easy carrying and lifting
  • Resistant mains cable (5 m) with rubber shroud

The machine shown may differ in equipment and technical details depending on the configuration.

Kindly pay attention to delivery scope and product description.

Accessories included only if listed in the delivery scope.

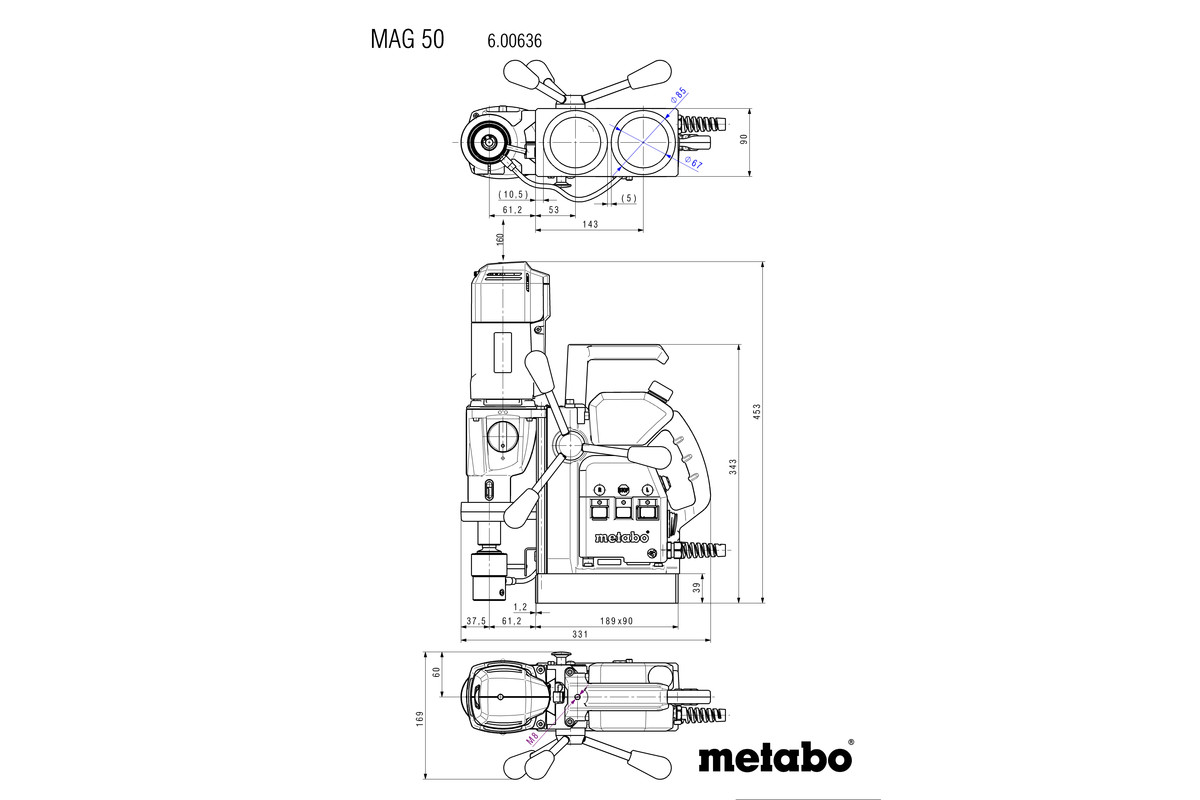

Characteristic
Bit retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Height carriage lowest position 457 mm / 18 "
Height carriage topmost position 610 mm / 24 "
Max. depth of feed 160 mm / 6 5/16 "
Max. drill-Ø with core drill 50 mm / 2 "
Max. magnetic holding force 12250 N
Maximum drilling depth 50 mm / 2 "
Revolutions at rated load 250 / 450 rpm
Thread cutting M 16
Torque 90 / 50 Nm // 797 / 443 in-lbs
No-load speed 100 - 250 / 200 - 450 rpm
Rated input power 1200 W
Output power 620 W
Noise emission
Sound power level (LwA) 92 dB(A)
Uncertainty of measurement K 3 dB(A)
Sound pressure level 79 dB(A)
Meansure
Dimensions of the magnet base 90 x 190 mm / 3 9/16 x 7 1/2 "
Cable length 5 m / 16 ft
WEIGHT 12.7 kg / 28 lbs
